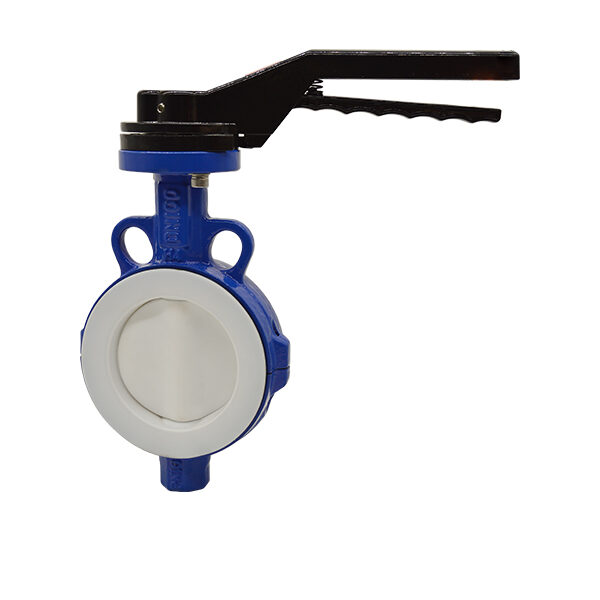

Wafer Type Corrosion-Resistant Butterfly Valve CB0009
Technical Parameters
Specification Range: DN50-DN300
Pressure: PN10, PN16, Class125, 10K, 16K
Temperature Range: -40℃ to 180℃
Face-to-Face Length: DIN3202, API609
Flange Standard: ANSI B16.5, EN1092, JIS B2220
Main Component Materials
Valve Body: Ductile Iron, Carbon Steel, Stainless Steel
Valve Disc: PTFE, RTFE, PFA, TFM lined Stainless Steel
Valve Seat: PTFE, RTFE, PFA, TFM
Valve Stem: Stainless Steel
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Features and Advantages
● Corrosion-resistant lined butterfly valves are designed to control and isolate corrosive media.
● Fully lined valves are highly recommended for erosive and corrosive applications that require reliable performance, tight shutoff, consistent torque, and maintenance-free operation.
● PTFE, PFA, FEP, and other fluoropolymers are made using original resins from well-known brands.
● Particularly for lined valves, factors such as lining thickness, resin quality, and manufacturing techniques have a significant impact on the valve’s performance and service life.
● Operable via handle, worm gear, electric actuator, or pneumatic actuator.
