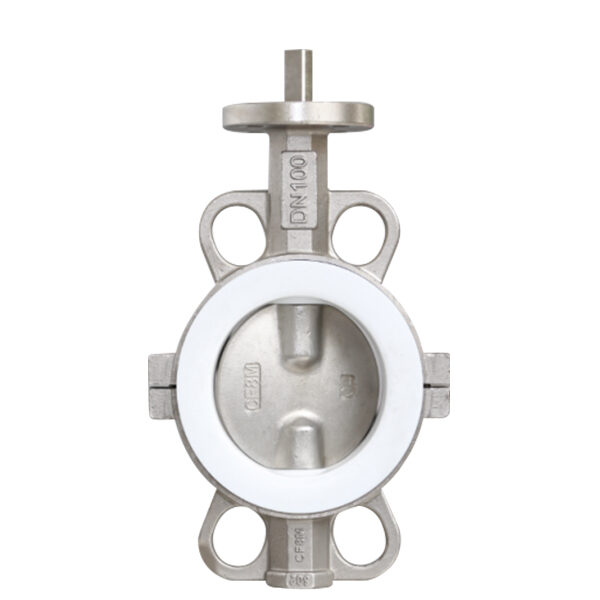

Wafer Type Corrosion-Resistant Butterfly Valve B80W
Technical Parameters
Specification Range: DN40-DN800
Pressure: PN10, PN16, Class125/150, 10K, 16K
Temperature Range: -40℃ to 180℃
Face-to-Face Dimension: DIN3202, API609
Flange Standard: ANSI B16.5, EN1092, JIS B2220
Main Component Materials
Body: Ductile Iron, Carbon Steel, Stainless Steel
Disc: PTFE, RTFE, PFA, TFM lined Stainless Steel
Seat: PTFE, RTFE, PFA, TFM
Stem: Stainless Steel
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Features and Advantages
● Corrosion-resistant lined butterfly valves are designed for controlling and isolating corrosive media.
● Optional square universal flange valve body type available.
● Fully lugged valve body is available.
● Fully lined valves are strongly recommended for abrasive and corrosive applications that require reliable performance, tight shut-off, consistent torque, and maintenance-free operation.
● PTFE, PFA, FEP, and other fluoropolymers are produced using original resins from well-known brands.
● Especially for lined valves, factors such as lining thickness, resin quality, and manufacturing technology have a significant impact on valve performance and service life.
● Can be operated with a handle, worm gear drive, electric actuator, or pneumatic actuator.
