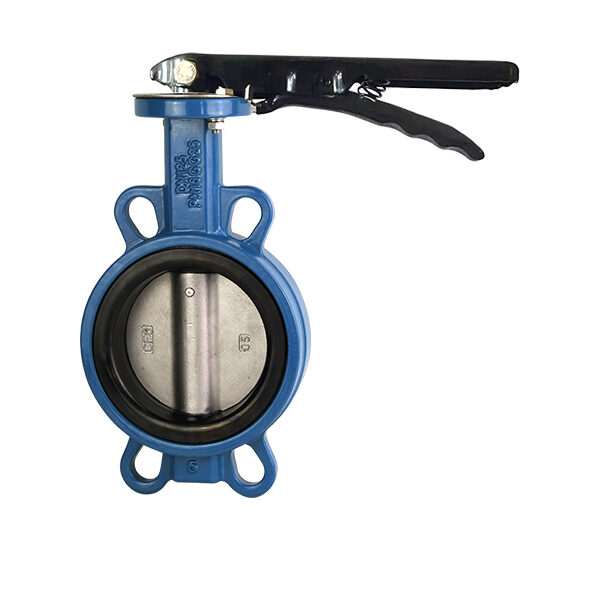

Wafer-type centerline hard-seated butterfly valve B15W
Technical Parameters
Specification Range: DN40-DN300
Pressure: PN10, PN16, 200PSI, 250PSI, 10K, 16K
Temperature Range: -20°C to +200°C (depending on material)
Face-to-Face Dimension: EN558-1 Series 20, ISO5752 Series 20, API609, DIN3202 K1
Flange Standards: ISO7005-2 PN10/PN16, EN1092-2 PN10/PN16, ANSI 125/150, AS4087 PN14/PN16, JIS 10K/16K
Main Component Materials:
Valve Body: Grey cast iron, ductile iron, carbon steel, stainless steel
Disc: Ductile iron, stainless steel, aluminum bronze, duplex steel
Stem: Stainless steel, duplex steel, Monel
Seat: Rubber
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Features and Advantages
● The butterfly valve adopts a one-piece lug body, compatible with various flanges, lightweight, and high strength.
● The resilient valve seat uses phenolic (or aluminum) hard backing to prevent movement and deformation to the greatest extent.
● The valve seat can be vulcanized, suitable for end-of-line piping and vacuum environments.
● The connection between the valve disc and valve stem is available in two types: a non-pinned spline type and a pinned type.
● High Cv value, low pressure loss, and low torque.
● The operating mechanism can be a handle, worm gear drive, electric actuator, or pneumatic actuator.
● Replaceable valve seat, easy maintenance, and long service life.
