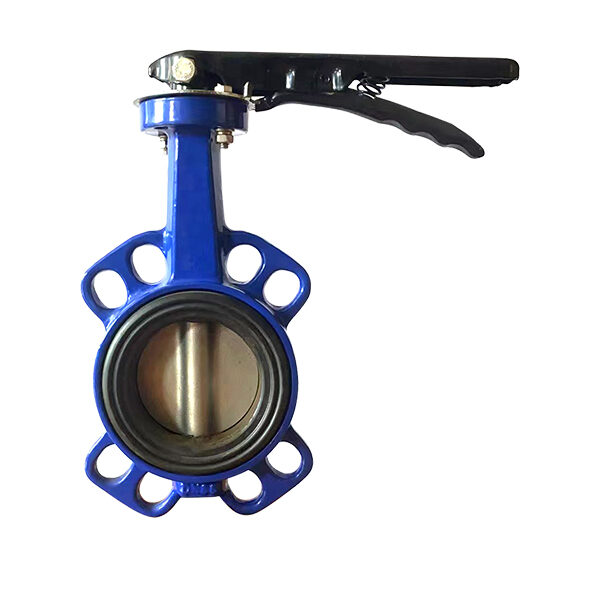

Wafer-style Soft Seat Butterfly Valve B20W
Technical Parameters
Specification Range: DN40-DN1200
Pressure: PN10, PN16, 200PSI, 250PSI, 10K, 16K
Temperature Range: -20°C to +200°C (depending on material)
Face-to-Face Dimensions: EN558-1 Series 20, ISO5752 Series 20, API609, DIN3202 K1
Flange Standards: ISO7005-2 PN10/PN16, EN1092-2 PN10/PN16, ANSI 125/150, AS4087 PN14/PN16, JIS 10K/16K
Main Component Materials:
Valve Body: Gray iron, ductile iron, carbon steel, stainless steel
Valve Disc: Ductile iron, stainless steel, aluminum bronze, duplex steel
Valve Stem: Stainless steel, duplex steel, Monel
Valve Seat: EPDM, NBR, Viton, NR, Silicone
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Features and Advantages
● The butterfly valve adopts a one-piece lug-type valve body with a soft valve seat design, making it heavy-duty and high-strength.
● The resilient soft valve seat isolates the valve body and valve stem from the pipeline medium, ensuring excellent sealing under rated pressure.
● Replaceable valve seat, easy to maintain, and long service life.
● The connection between the disc and the valve stem can be either with or without pins.
● High Cv value, low pressure loss, low torque.
● The operating mechanism can be a handle, worm gear drive, electric actuator, or pneumatic actuator.
