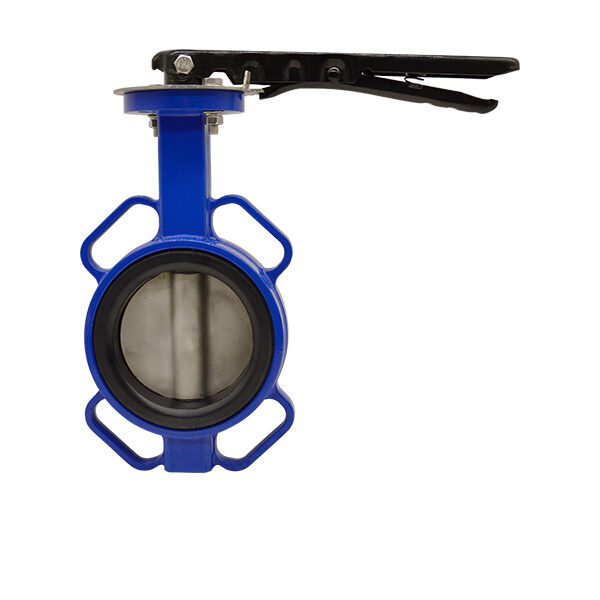

Wafer Centerline Hard-Seated Butterfly Valve B12W
Technical Parameters
Specification Range: DN40-DN300
Pressure: PN10, PN16, 200PSI, 250PSI, 10K, 16K
Temperature Range: -20°C to +200°C (depending on material)
Face-to-Face Dimensions: EN558-1 Series 20, ISO5752 Series 20, API609, DIN3202 K1
Flange Standards: ISO7005-2 PN10/PN16, EN1092-2 PN10/PN16, ANSI 125/150, AS4087 PN14/PN16, JIS 10K/16K
Main Component Materials:
Valve Body: Grey Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel
Disc: Ductile Iron, Stainless Steel, Aluminum Bronze, Duplex Steel
Stem: Stainless Steel, Duplex Steel, Monel
Seat: EPDM, NBR, PTFE, Viton, NR, Silicone
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Features and Advantages
● The butterfly valve uses a one-piece square-hole universal flange body, suitable for various flanges, with high strength.
● The resilient valve seat uses phenolic (or aluminum) hard backing, maximizing resistance to movement and deformation.
● The valve seat can be vulcanized type, suitable for pipeline ends and vacuum environments.
● The connection between the valve disc and valve stem is available in both pinless spline type and pinned type.
● High Cv value, low pressure loss, and low torque.
● The actuator can be operated by a handle, worm gear drive, electric actuator, or pneumatic actuator.
● The valve seat is replaceable, easy to maintain, and has a long service life.
