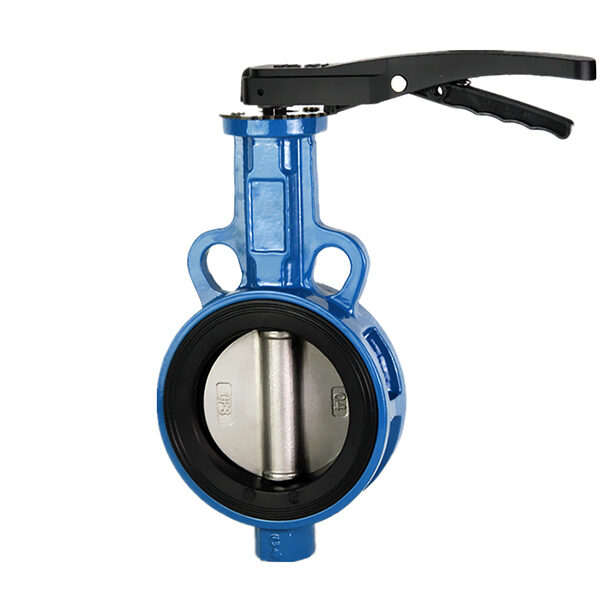

Wafer Center Line Soft Seat Butterfly Valve CB0008
Technical Parameters
● Size Range: DN40-DN300
● Pressure: PN10, PN16, 200PSI, 250PSI, 10K, 16K
● Temperature Range: -20°C to +200°C (depending on material)
● Face-to-Face: EN558-1 Series 20, ISO5752 Series 20, API609
● Flange Standards: ISO7005-2 PN10/PN16, EN1092-2 PN10/PN16, ANSI 125/150, AS4087 PN14/PN16, JIS2211-2212
● Main Component Materials:
Valve Body: Gray Iron, Ductile Iron
Disc: Ductile Iron, Stainless Steel, Aluminum Bronze, Duplex Steel
Stem: Stainless Steel, Duplex Steel
Seat: EPDM, NBR, NEOPRENE, FPM
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Features and Advantages
● The butterfly valve uses an integrated valve body, which is lightweight and high in strength.
● The resilient soft valve seat isolates the valve body and stem from the pipeline medium, ensuring a tight seal under full rated pressure.
● Low maintenance cost design with long service life.
● High Cv and low pressure drop, providing energy savings for the customer’s system.
● Streamlined valve disc design achieves maximum flow and range capability.
● Valve stem is designed to prevent dislodgement.
● The use of upper and lower stem bearings ensures longer valve seat life and lower operating torque.
