Wafer Center Line Soft Seat Butterfly Valve B23L
Technical Parameters
Specification Range: DN40-DN300
Pressure: PN10, PN16, 200PSI, 250PSI, 10K, 16K
Temperature Range: -20°C to +200°C (depending on material)
Face-to-Face Length: EN558-1 20 Series, ISO5752 20 Series, API609, DIN3202 K1
Flange Standard: ISO7005-2 PN10/PN16, EN1092-2 PN10/PN16, ANSI 125/150, AS4087 PN14/PN16, JIS 10K/16K
Main Component Materials:
Body: Gray iron, ductile iron, carbon steel, stainless steel
Disc: Ductile iron, stainless steel, aluminum bronze, duplex steel
Stem: Stainless steel, duplex steel, Monel
Seat: EPDM, NBR, Viton, NR, Silicone
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Features and Advantages

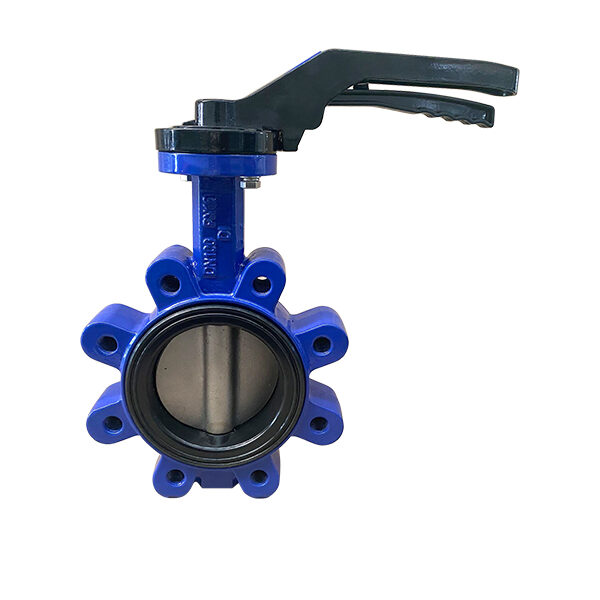

● The butterfly valve uses a one-piece lug body with a soft valve seat design, built for heavy-duty and high strength.
● The valve disc uses spherical sealing, providing high sealing pressure and excellent sealing performance.
● The elastic soft valve seat isolates the valve body and stem from the pipeline medium and ensures excellent sealing under rated pressure.
● Replaceable valve seat, easy maintenance, long service life.
● The connection between the valve disc and stem can be either pinned or non-pinned.
● High Cv value, low pressure loss, low torque.
● The operating mechanism can be a handle, worm gear drive, electric actuator, or pneumatic actuator.
