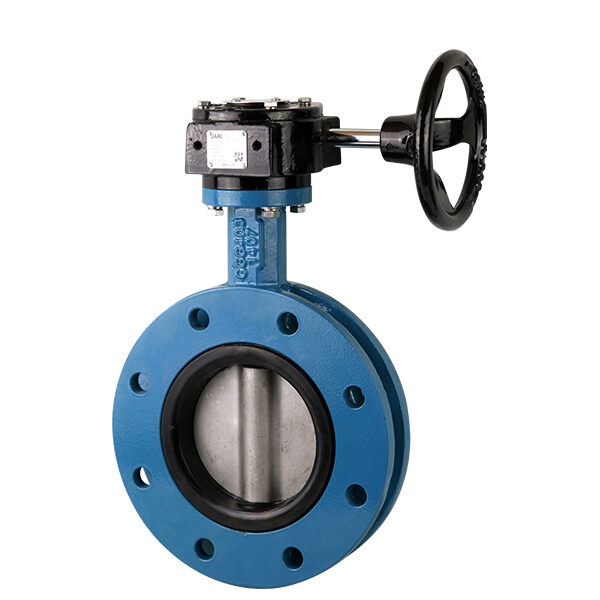

U-type Flange Center Line Butterfly Valve B10U
Technical Parameters
Specification Range: DN50-DN1200
Pressure: PN10, PN16, 200PSI, 250PSI, 10K, 16K
Temperature Range: -20°C to +200°C (depending on material)
Face-to-Face Dimensions: EN558-1 Series 20, ISO5752 Series 20, API609, DIN3202 K1
Flange Standards: ISO7005-2 PN10/PN16, EN1092-2 PN10/PN16, ANSI 125/150, AS4087 PN14/PN16, JIS 10K/16K
Main Component Materials:
Body: Gray iron, ductile iron, carbon steel, stainless steel
Disc: Ductile iron, stainless steel, aluminum bronze, duplex steel
Stem: Stainless steel, duplex steel, Monel
Seat: EPDM, NBR, PTFE, Viton, NR, Silicone
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Features and Advantages
● The butterfly valve features a one-piece U-shaped body, providing high strength.
● The elastic valve seat uses a phenolic (or aluminum) hard backing to minimize movement and deformation.
● The valve seat can be vulcanized type, suitable for pipeline ends and vacuum environments.
● The connection between the valve disc and valve stem can be either a pinless spline type or a pinned type.
● High Cv value, low pressure loss, and low torque.
● The actuator can be a handle, worm gear drive, electric actuator, or pneumatic actuator.
● The valve seat is replaceable, easy to maintain, and has a long service life.
